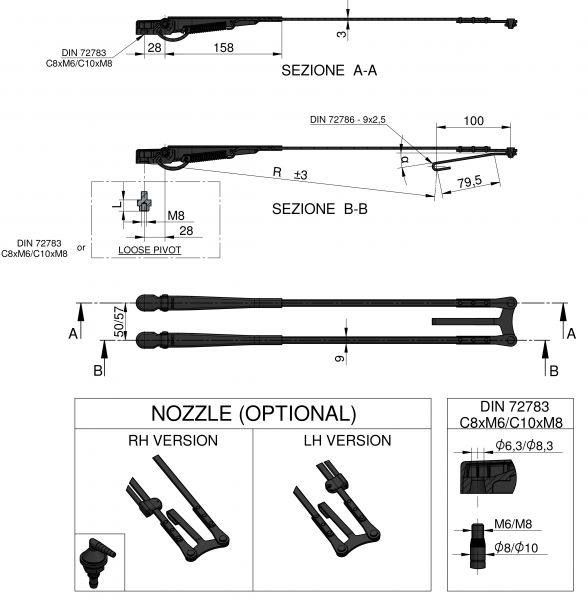

Fixed pantograph arm 9x3: The pantograph ar ms allow the wiping of a less circular area, with the blade that cleans in an upright position.
The adjustability of the ar m allows the use of the same component in different but similar applications.
| Lengths: | 485 | 520 | 525 | 550 | 575 | 600 |
| Shaft connection: | DIN72783 C8xM6 | DIN72783 C10xM8 | Free shaft with M8 hole | |||
| Blade connection: | DIN72786-3 9x3 Hook connection |
|||||
| Nozzle | Optional | |||||
