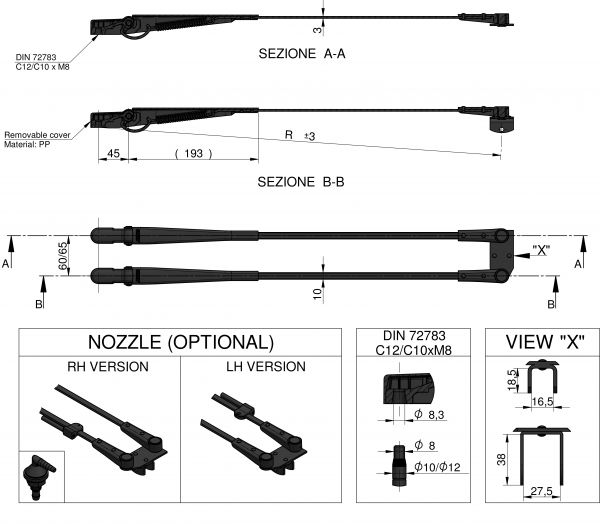

Pantograph arm 10x3: The pantograph ar ms allow the wiping of a less circular area, with the blade that cleans in an upright position.
The adjustability of the ar m allows the use of the same component in different but similar applications.
| Lengths: | 450 | 470 | 485 | 500 | 510 | 535 | 540 | 570 | 600 | 615 | 620 | 650 |
| Shaft connection: | DIN72783 C10xM8 | DIN72783 C12xM8 | ||||||||||
| Blade connection: | Bayonet connection | DIN72786 16,5mm Saddle connection |
DIN72786 26,5mm Saddle connection |
|||||||||
| Nozzle | Optional | |||||||||||
