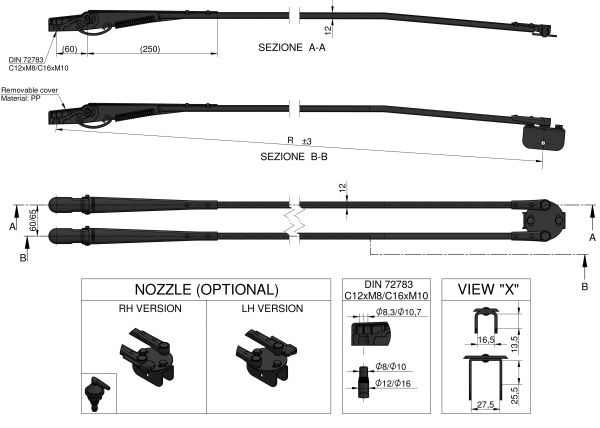

Pantograph arm 12x12: The pantograph ar ms allow the wiping of a less circular area, with the blade that cleans in an upright position.
The adjustability of the ar m allows the use of the same component in different but similar applications.
| Lengths: | 800 | 950 | 975 | 1000 | 1050 | 1100 | 1250 | ||||||||||||||
| Angles bending: | 0°÷40° | ||||||||||||||||||||
| Shaft connection: | DIN72783 C12xM8 | DIN72783 C16xM10 | Ø11 Parallel knurling 90° | ||||||||||||||||||
| Blade connection: | Saddle connection 16,5mm (DIN72786) | Saddle connection 26,5mm (DIN72786) | |||||||||||||||||||
| Nozzle | Optional | ||||||||||||||||||||
