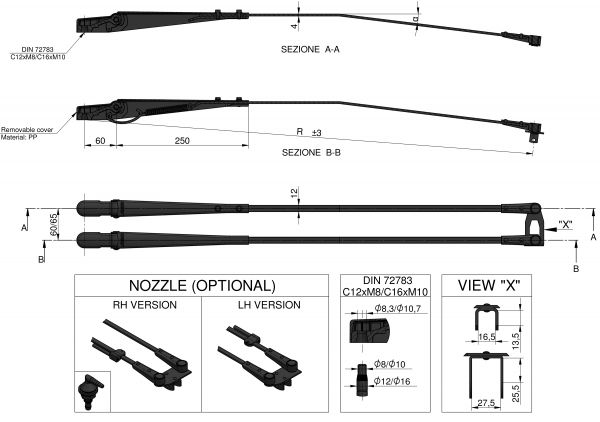

Pantograph arm 12x4: The pantograph ar ms allow the wiping of a less circular area, with the blade that cleans in an upright position.
The adjustability of the ar m allows the use of the same component in different but similar applications.
| Lengths: | 600 | 610 | 650 | 660 | 670 | 680 | 700 | 725 | 730 | 750 | 790 | 800 | 840 | 850 | 870 | 875 | 880 | 900 | 910 | 930 | 1000 |
| Shaft connection: | DIN72783 C10xM8 | DIN72783 C12xM8 | DIN72783 C16xM10 | Ø11 Parallel knurling 90° | |||||||||||||||||
| Blade connection: | DIN72786 16,5mm - Saddle connection | DIN72786 26,5mm - Saddle connection | |||||||||||||||||||
| Nozzle | Optional | ||||||||||||||||||||
